The sleds below belongs to :

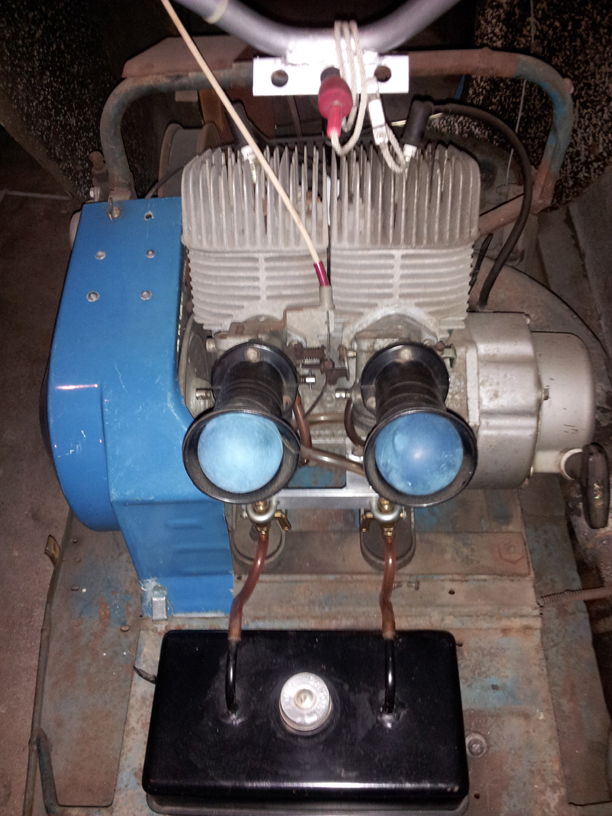

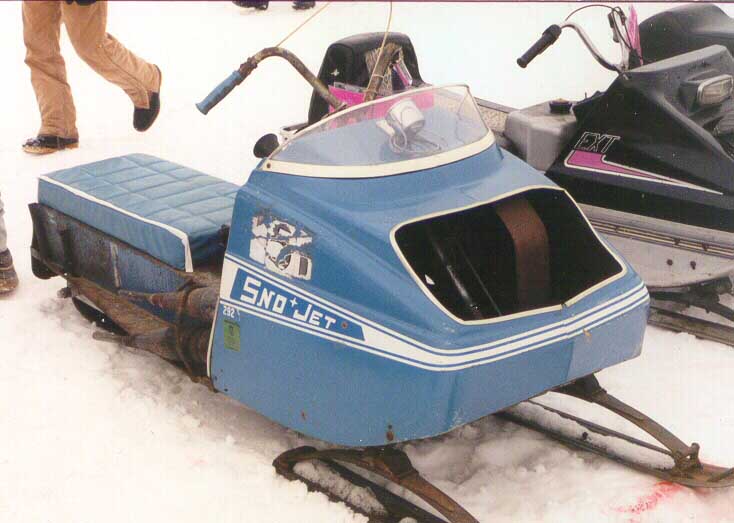

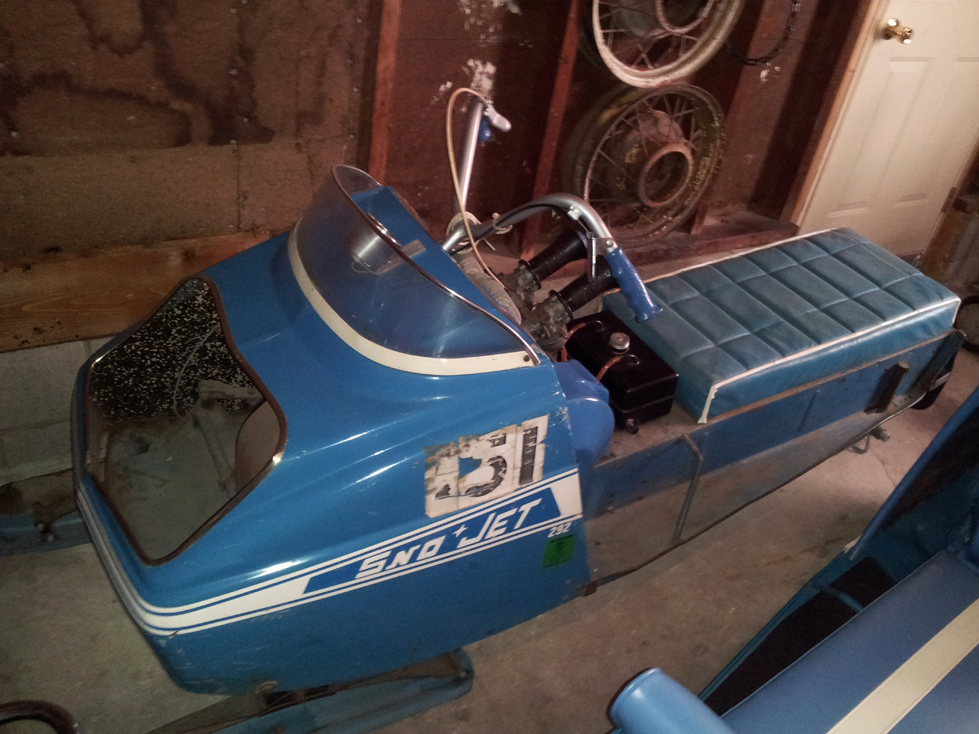

This sled is a perfect example of a completely original modified grass drag
racer circa 1971. It had started life as a 1970 Sno Jet GT-2 396, and in 1971
was modified for grass racing. The only stock GT items are the chassis (though
heavily modified), and the bottom end of the motor. Here are the specifications:

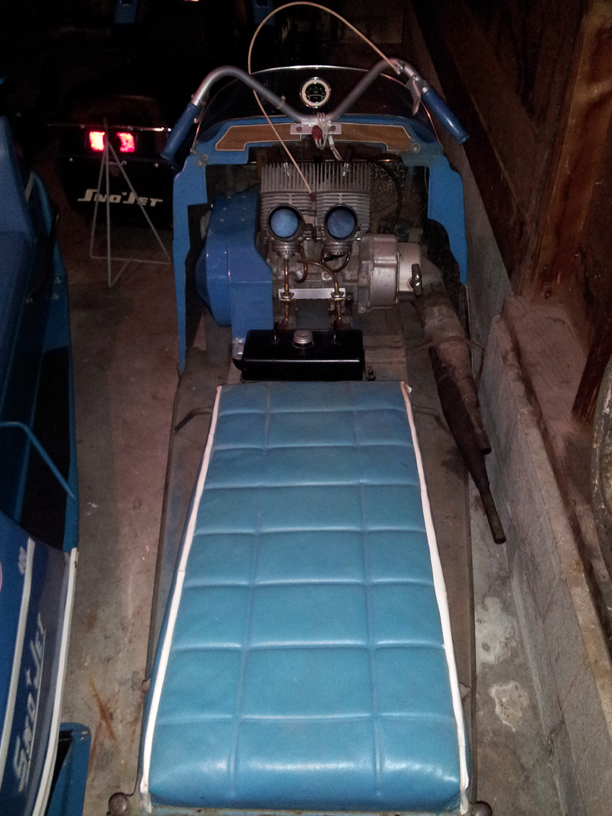

Engine: modified 396cc Yamaha twin F/A sleeved down
to 338cc, SR heads
Fuel: methyl alcohol/Klotz racing castor, 20/1

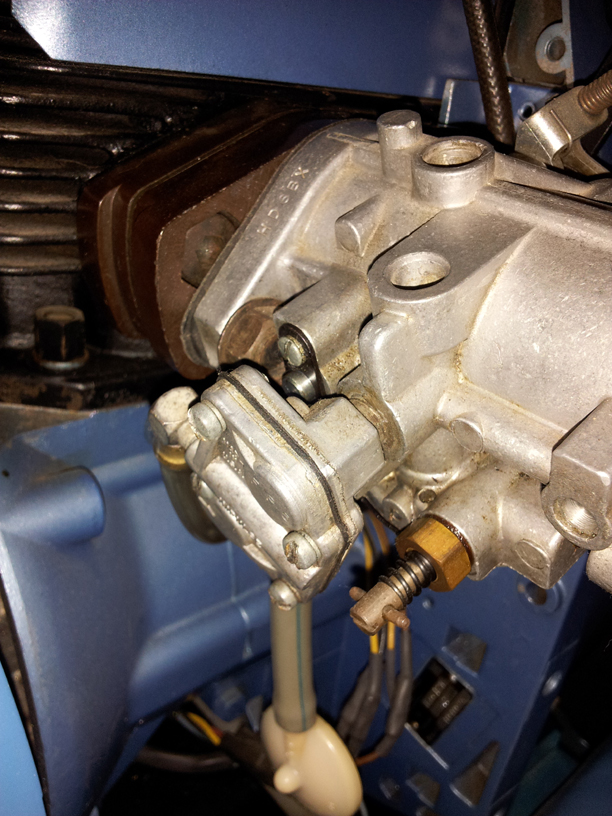

Carbs: twin model 820E2 Mikuni diaphragm type, modded for alcohol

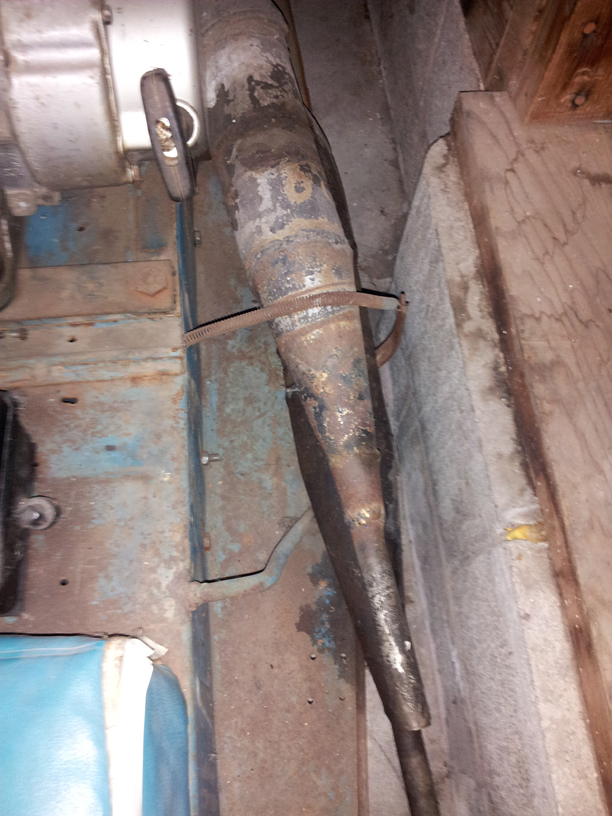

Exhaust:twin hand built alcohol stinger pipes
Suspension:early Kalamazoo Engineering "Sandblaster" aircraft aluminum alloyed
grass drag racing suspension
Track: 15" Gates involute drive "Poly Trac"

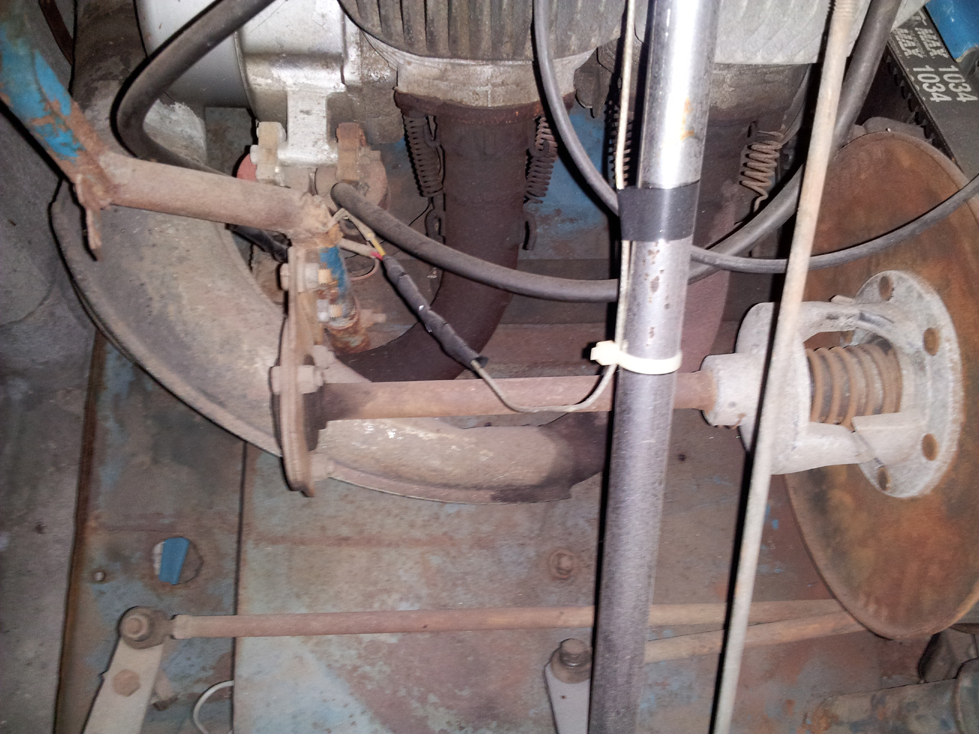

Fabricated convertor jack shaft

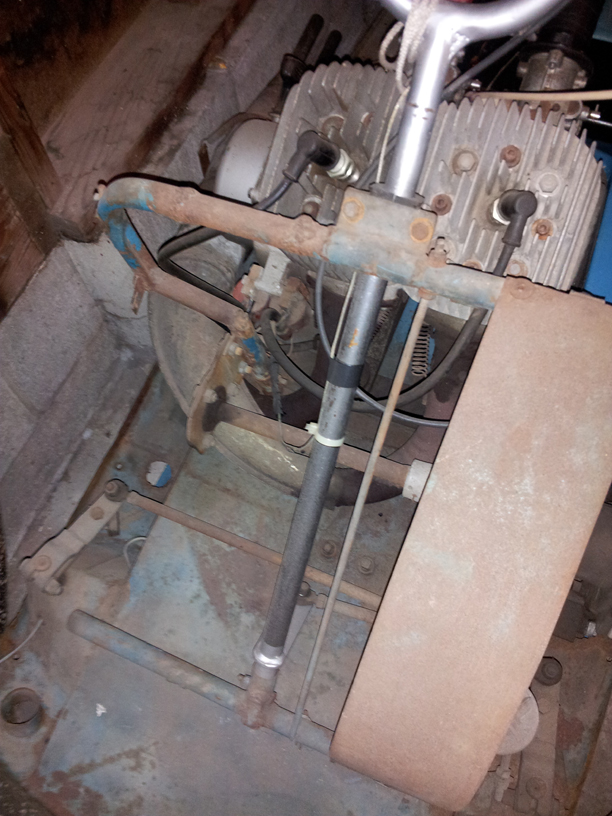

Fabricated steel convertor safety shield

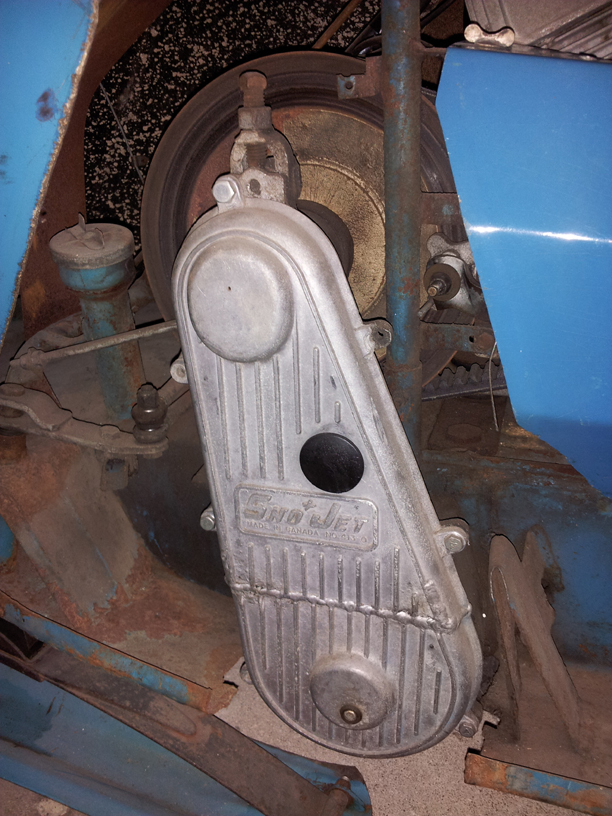

Drive shaft lowered 1", chaincase extended One gallon mid-mount fuel tank with
Early Kalamazoo Engineering safety tether switch
"Ape hanger" handlebars
Westach "Tic Tac" tachometer
Original race numbers (151), and MISA "Safety Chek'd" inspection label
This machine was originally a 1970 GT 2 modified back in the day for grass racing. Was located in Ionia, Michigan in 1996. There is a strong possibility that this was one of Jim Adema's machines...in the process of researching it's provenance. It is a rare survivor nonetheless.

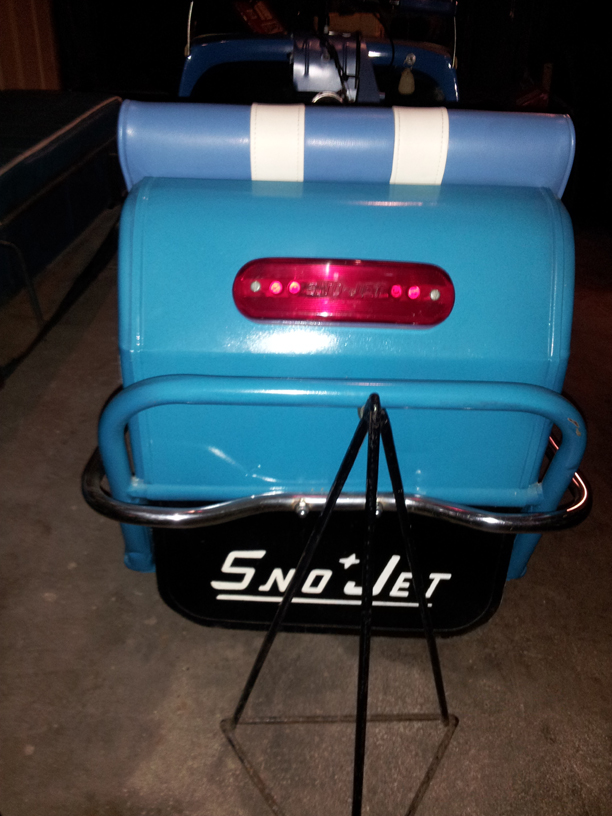

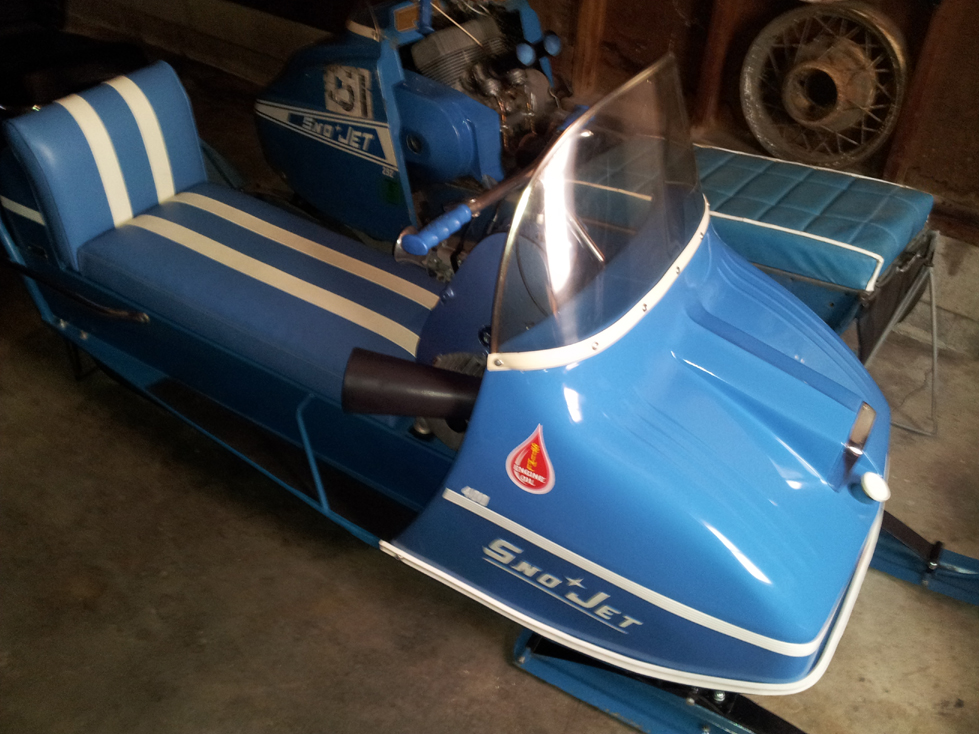

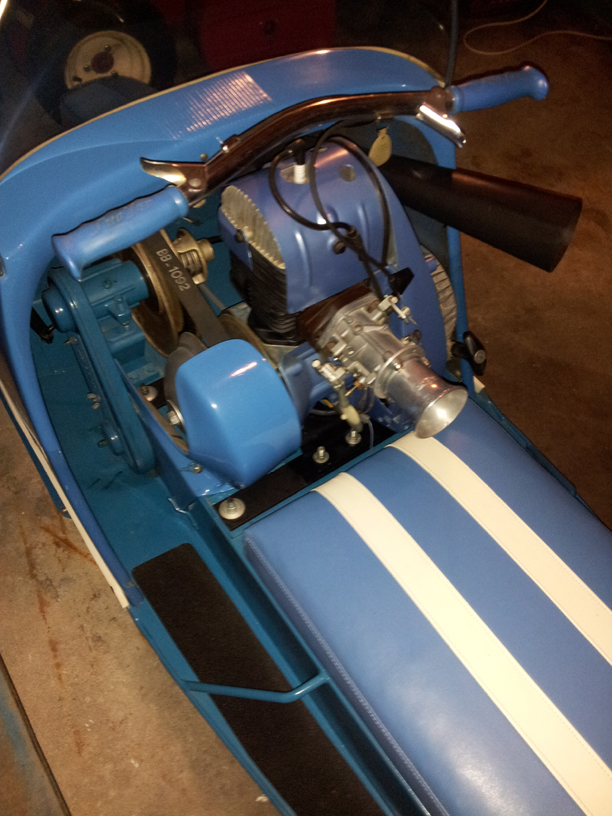

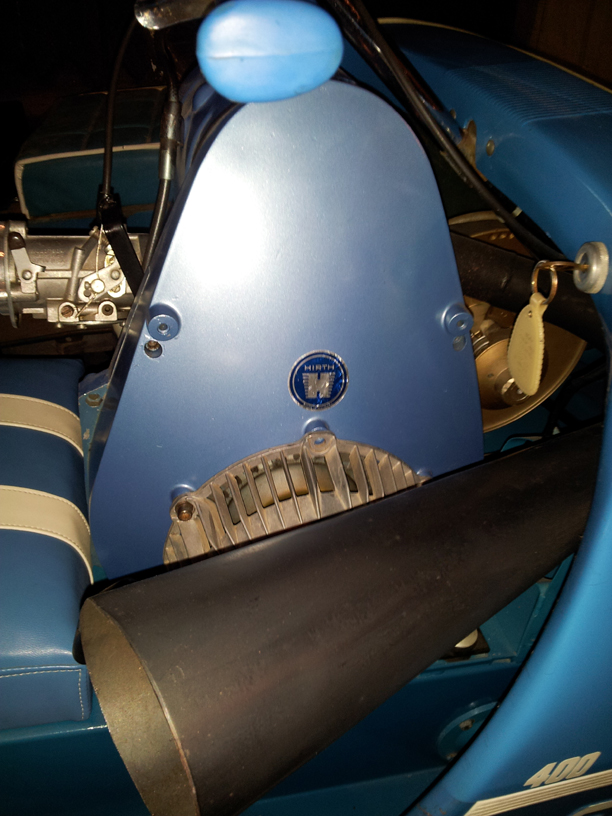

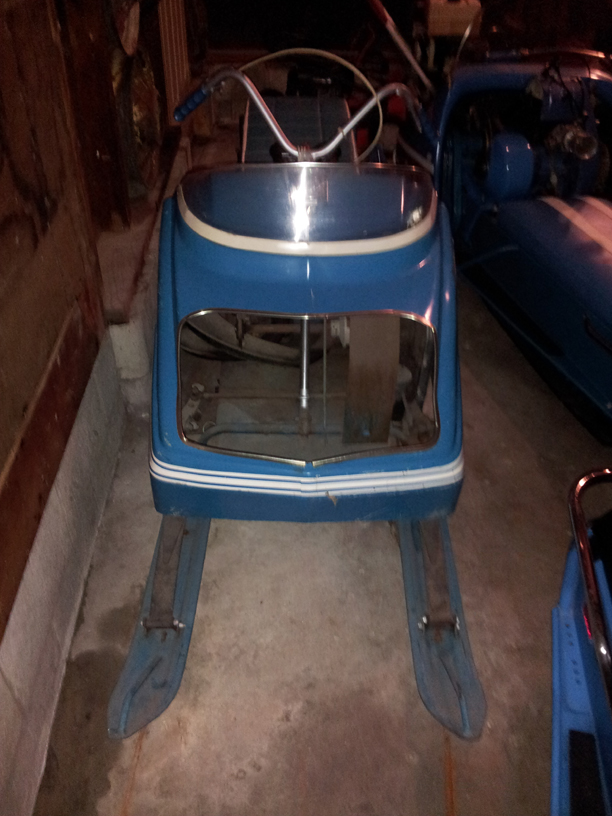

Here is a 1968 Model 400 MOD.

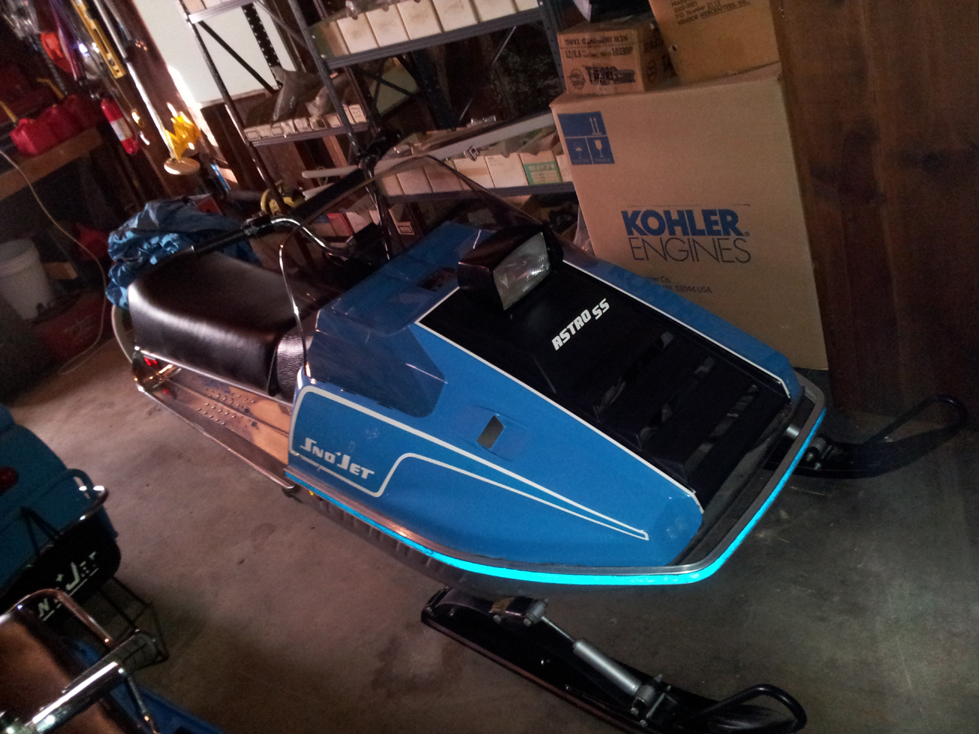

Here is a 1976 Astro SS.

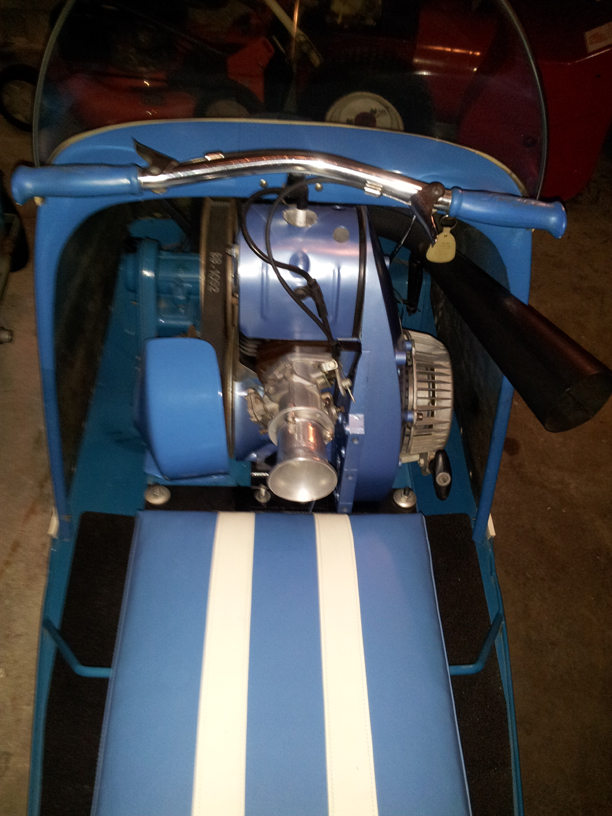

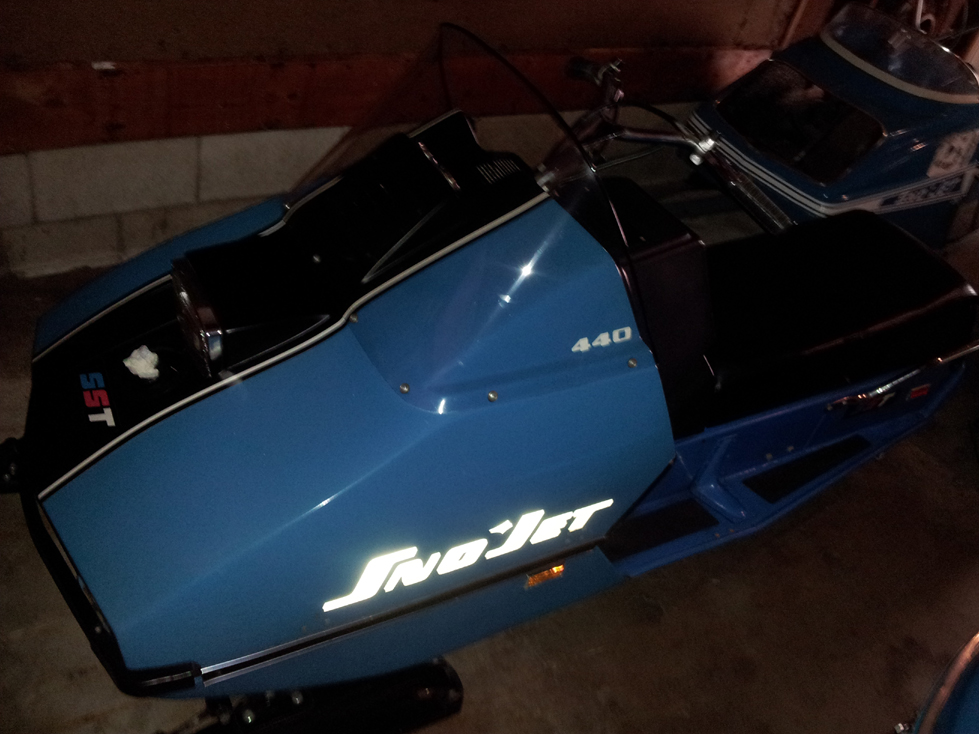

Here is a 74 SST 440.

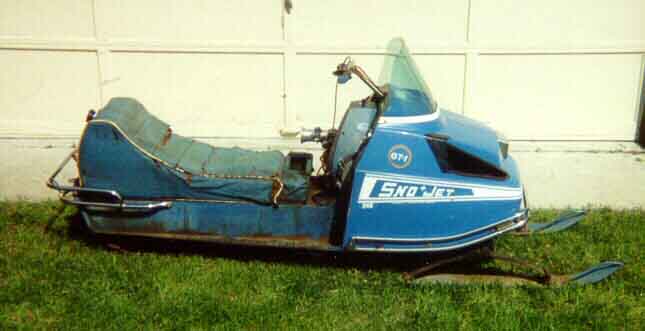

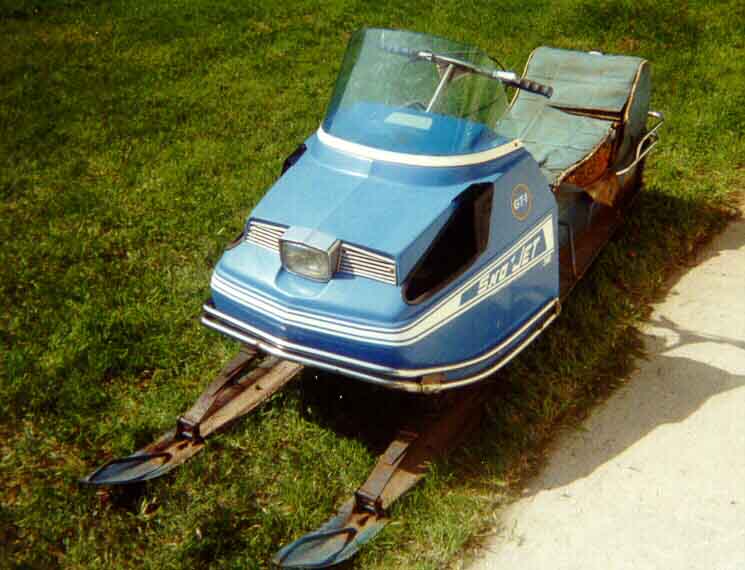

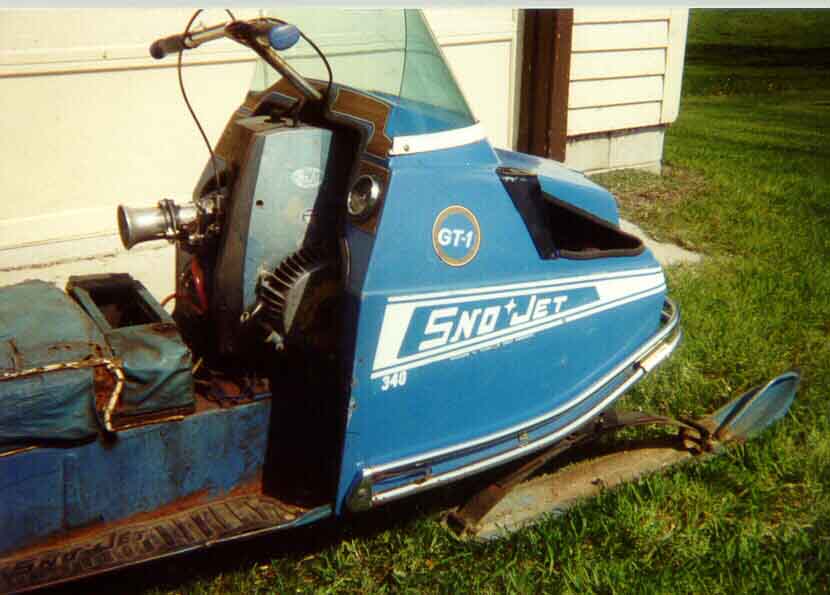

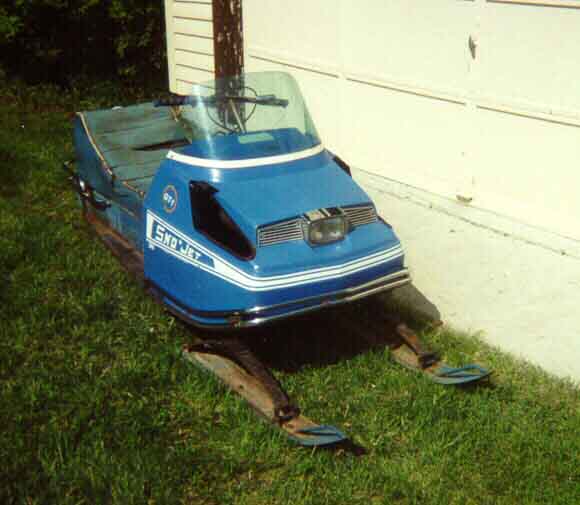

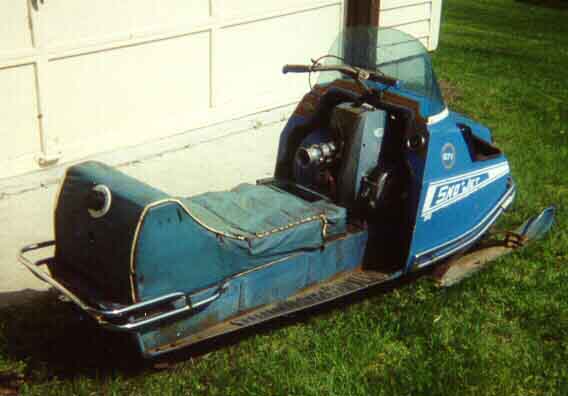

Here is Ross' original 1970 GTI!
